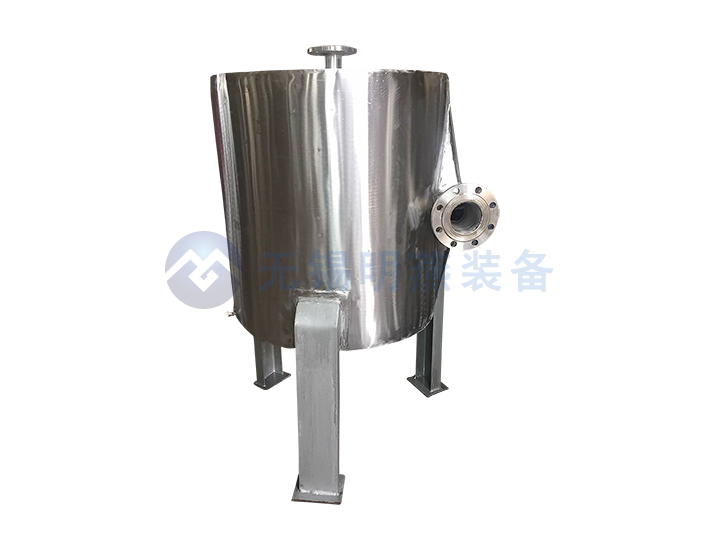

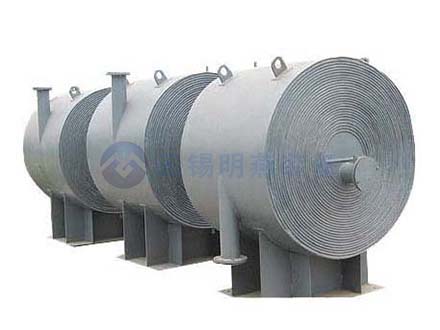

Spiral plate heat exchanger


Product Description

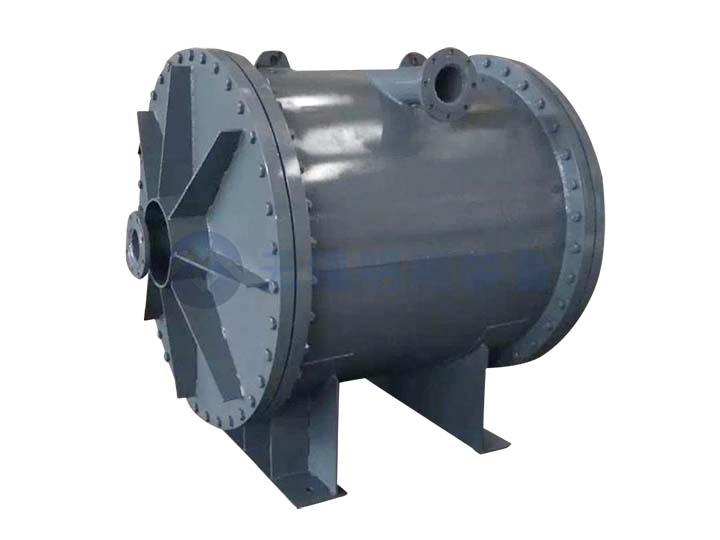

Spiral plate heat exchanger is a kind of heat exchange equipment, suitable for gas-gas, gas-liquid, liquid-liquid, as well as heat transfer for condensation and liquid evaporation. The product has the advantages of high heat transfer efficiency, strong dirt self-cleaning ability, good effect, small size, low price, and reliable use. Products are widely used in chemical, petroleum, solvent, medicine, food, light industry, textile, metallurgy, steel rolling, coking and other industries. According to the structure, it can be divided into non-detachable (type Ⅰ) spiral plate heat exchanger and detachable (type Ⅱ, Ⅲ) spiral plate heat exchanger.

Basic parameters
The nominal pressure PN of the spiral plate heat exchanger is specified as 0.6, 1, 1.6, 2.5Mpa (that is, the original 6, 10, 16, 25kg/cm2) (refers to the large working pressure that a single channel can withstand) The test pressure is the working pressure 1.25 times.
The material of the contact part of the spiral plate heat exchanger with the medium is Q235A and Q235AF for carbon steel, and SUS321 and SUS304 for stainless steel acid steel. Other materials can be selected according to user requirements.
Allowable working temperature: t=0~+350℃ for carbon steel, t=-40~500℃ for stainless steel acid steel, and the range of heating and pressure reduction is in accordance with the relevant regulations of pressure vessels. When selecting this equipment, proper process calculations should be used to make the fluid in the equipment channel reach a turbulent state. (Generally, the liquid velocity is 1m/Sec and the gas velocity is 10m/Sec).
A single device cannot meet the requirements for use, and multiple devices can be used in combination, but the combination must meet the following requirements:
Parallel combination, series combination: the same distance between equipment and channels.
Mixed combination: One channel is connected in parallel and one channel is connected in series.

Technical parameters of spiral plate heat exchanger
Nominal heat transfer area Channel spacing Carbon steel stainless steel
Board thickness
5m² 6—10 4mm 2~3mm
10m² 6—10 4mm 2~3mm
20m² 6—14 4mm 2~3mm
30m² 10—14 4mm 2~3mm
40m² 10—14 4mm 2~3mm
50m² 10—14 4mm 2~3mm
60m² 14—18 4mm 2~3mm
70m² 14—18 4mm 2~3mm
80m² 14—18 4mm 2~3mm
100m² 14—18 4mm 2~3mm
120m² 14—20 4~5mm 2~4mm
130m² 14—20 4~5mm 2~4mm
150m² 14—20 4~5mm 2~4mm
300m² 14—20 4~5mm 2~4mm
